户内固装KC系列
| 型号 | KC 0156 | KC 0189 | KC 0125 | KC 0126 | KC 0129 | KC 0139 | KC 0148 |
| 像素间距 | 1.56mm | 1.89mm | 2.5mm | 2.6mm | 2.9mm | 3.9mm | 4.8mm |
| LED封装型号 | SMD1212 | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| 像素密度(pixel/m²) | 409,600 | 278,784 | 160,000 | 147,456 | 112,896 | 65,536 | 43,264 |
| 模组分辨率(pixel) | 160x160 | 132x132 | 100x100 | 96x96 | 84x84 | 64x64 | 52x52 |

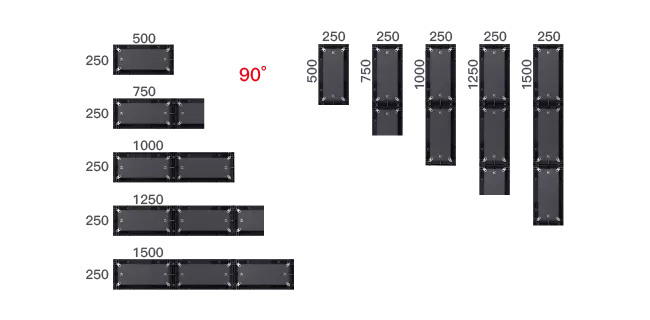

| 模组尺寸(WxH)(mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| 亮度(cd/m²) | 600-800 | 600-800 | 800-1000 | 800-1000 | 800-1000 | 800-1000 | 800-1000 |
| 最大/平均功率(W/m²) | 420/140 | ||||||
| 刷新率 | 3840Hz | ||||||
| 灰度等级 | 14bits | ||||||
