XR DOB系列
| 型号 | KD-DOB 1.25 | KD-DOB 1.52 | KD-DOB 1.83 | KD-DOB 1.95 | KD-DOB 2.5 | KD-DOB 2.6 | KD-DOB 2.976 | KD-DOB 3.91 |
| 像素间距 | 1.25mm | 1.524mm | 1.83mm | 1.95mm | 2.5mm | 2.6mm | 2.976mm | 3.91mm |
| LED封装型号 | 1010 | 1212 | 1212 | 1415/1515(可选配) | 1415/1515(可选配)< | 1415/1515(可选配)< | 1415/1515(可选配) | 1921/2020(可选配)< |
| 像素密度/m²) | 640,000 | 430,336 | 295,936 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 |
| 模组分辨率（pixel） | 200x200 | 164x164 | 136x136 | 128x128 | 100x100 | 96x96 | 84x84 | 64x64 |

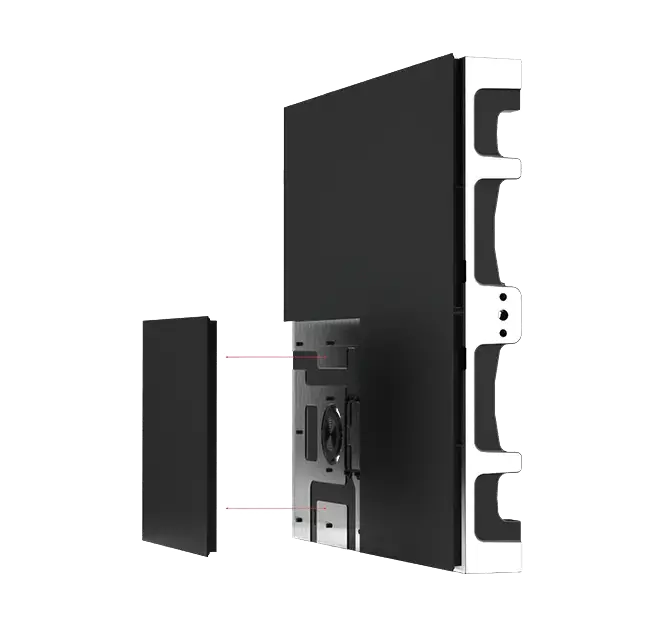

| 箱体尺寸(mm) | 500x500x89 | 500x500x89 | 500x500x89 | 500x500x89 | 500x500x89 | 500x500x89 | 500x500x89 | 500x500x89 |
| 亮度（cd/平方） | 600-900可调 | |||||||
| 防护等级 | IP54/IP45 | |||||||
